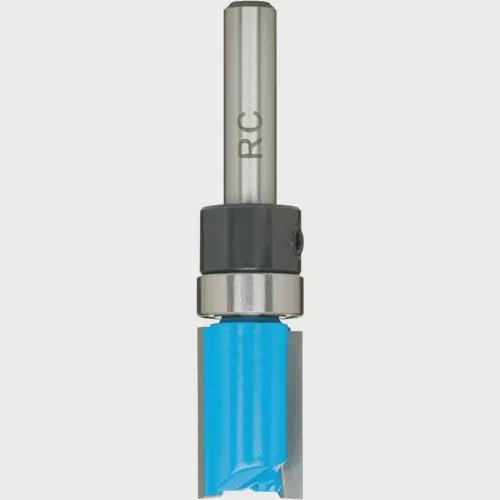

ROUTER BIT, 1/2" PATTERN

Excellent for part duplication and lettering, pattern-cutting router bits are also used for trimming edges, curves, inlays, signs, molding, millwork, and CNC routing.

This router bit is designed with two carbide cutting edges that run parallel to each other.

End of bit relief allows for fast plunging.

This bit also features a bearing which guides the bit along the cutting path and ensures a smooth finish.

The DC1306 has a 1/4" shank and can be used in either handheld or mounted in a router table.

The router bit used primarily for making cuts in solid wood, wood composites, plywood, some plastics, and laminated material.

Made in an ISO 9001 factory

SPECIFICATIONS:

• Cutter diameter: 1/2"
• Cutting length: 3/4"
• Overall length: 2-1/4"
• Shank diameter: 1/4"
• Maximum cutter speed: 24,000 RPM
